High-Pressure Reducer Pneumatic Solenoid Valve with High-Pressure Silencer and Filter Element

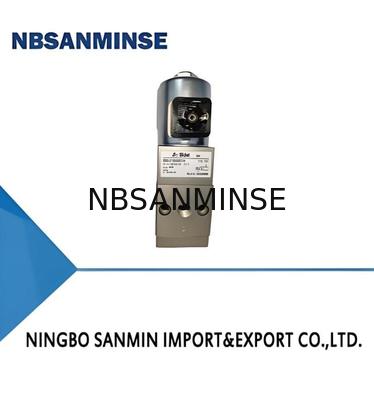

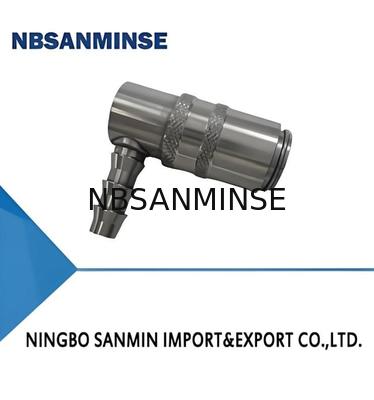

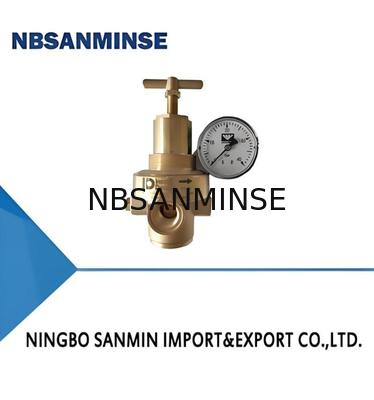

01123429701/A compensation solenoid valve		high-pressure reducer		30105551970 quick discharge coupling
high-pressure silencer		50001285  valve		00000141768 F171.121.01
High-pressure filter element		970.240.00 Test valve		970.242.00 Test valve
3061 Pilot valve		3062 Pilot valve		Damper

This is the basis of all pneumatic systems and is essential for the bottle blowing machine because the air is in direct contact with the bottle blank.

AIR COMPRESSOR: produces the compressed air required for the entire plant or bottle blower (normally low pressure section, e.g. 6-8 bar).

Air storage tank: used to stabilize air pressure, reduce pulsation of air compressor and act as emergency air source.

Air drier (refrigerating type or adsorption type): remove the water in the compressed air to prevent ice or water accumulation

 in the air circuit and valve, which will affect the action and product quality.

Main line filter: remove large particle impurities, oil stain and water in the compressed air. Generally divided into:

Three-stage filter: coarse filtration (degreasing water), fine filtration (fine dust removal) and activated carbon filtration (degreasing steam).

Pneumatic triplet: it is common at the inlet of each air circuit of the bottle blower and is a combination of three elements:

Filter: secondary fine filtration of air.

Pressure regulating valve: adjust and stabilize the air pressure to the working pressure required by the equipment.

Oil atomizer: atomize the lubricating oil and inject air to lubricate the actuating elements such as the cylinder

 (the use of modern oil-free lubrication cylinder has been gradually reduced).
