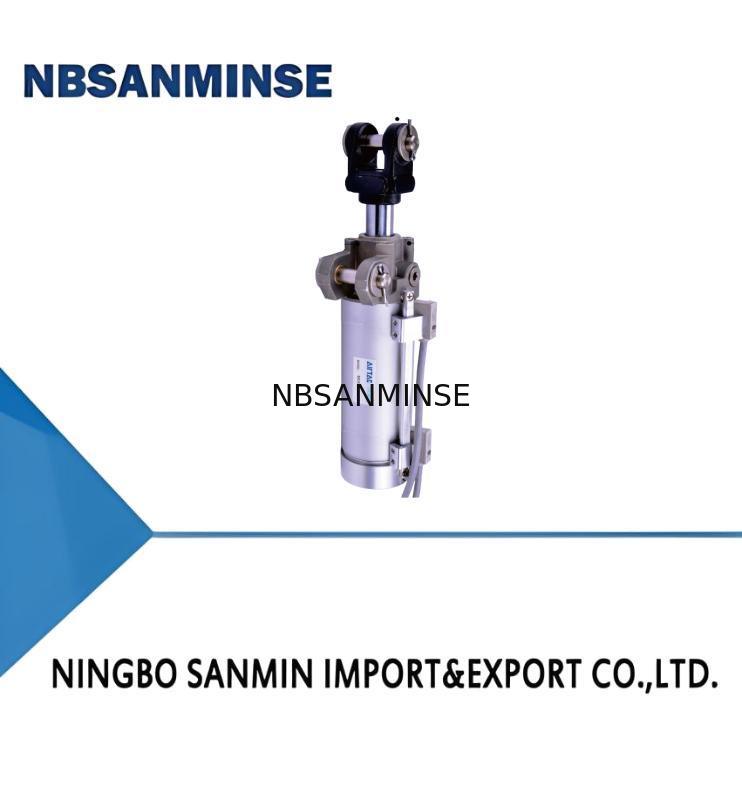

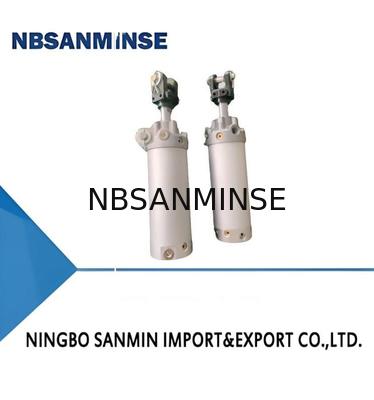

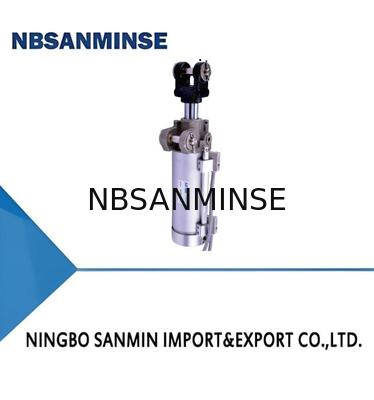

Clamping cylinder——MCK Series

Περιγραφή προϊόντων

Dustproof and welding slag out design:

There is a scraping dust ring in front cover,

and itis firm and durable that can avoid dust and

splashed welding slag breaking cylinders.
It is more reliable than dust helmet.

Yknuckle is available:

Various types of sensor switches are available.

1.The Anti-magnetic sensor should be used with the

anti-magnetic bracket.For details,refer to page P335.
2.Common sensors(DMSG/EMSG,CMSG)should be used with

the sensor holder(F-MCK40G).Please refer to common

sensors for details about DMSG/EMSG and CMSG sensorThe matching sensor

holders need to be ordered separately.The ordering method and installation method are as follows:

Installation and application

1.In normal situation such as:edge packing,installation,jig test..and so on.Standardcylinder is suggested.
2.In case of high-magnetic field generated by welding in the vicinity,anti-magnetic weldingclamp cylinder shall be used and corresponding anti-magnetic sensor switch shall be matched.
3.Before cylinder connecting,the dust must be eliminated to avoid it entering n the cylinder.
4.The medium used by cylinder shallbe filtered to 40μm or below.
5.Under high temperature environment,the cylinder of high-temperature resistance shallbe selected.Anti-freezing measure shall be adopted under low temperature environmentto prevent the water freezing in cylinder.
6.If cylinder is not used for along time,please advert the surface to get rusty.Inlet andoutlet ports should be have anti-dust caps and also spread the oil to avoid getting rusty

Application examples

Specification

Product feature

1.It suits for workshops that make automation welding.
2.There is a scraping dust ring in front cover,and it is firm and durable that can avoid dustand

splashed welding slag breaking cylinders.It is more reliable than dust helmet.
3.It fits the working environment where has strong magnetic field,if it uses

 the sensorswitch which is with strong magnet and anti-strong magnetic field.
4.Inlet interface are optional on three sides;buffer adjustment and speed limit adjustmentare built-in.
5.Various types of sensor switches are available.

[Note1]In powerful magnetic field,sensor switch for high-magnet shall be matched.Please refer to Page 335for option.
Inner structure and material of majorparts
