Brass Three-way plug valve connecting pressure gauges 0.6MPA

Περιγραφή προϊόντων

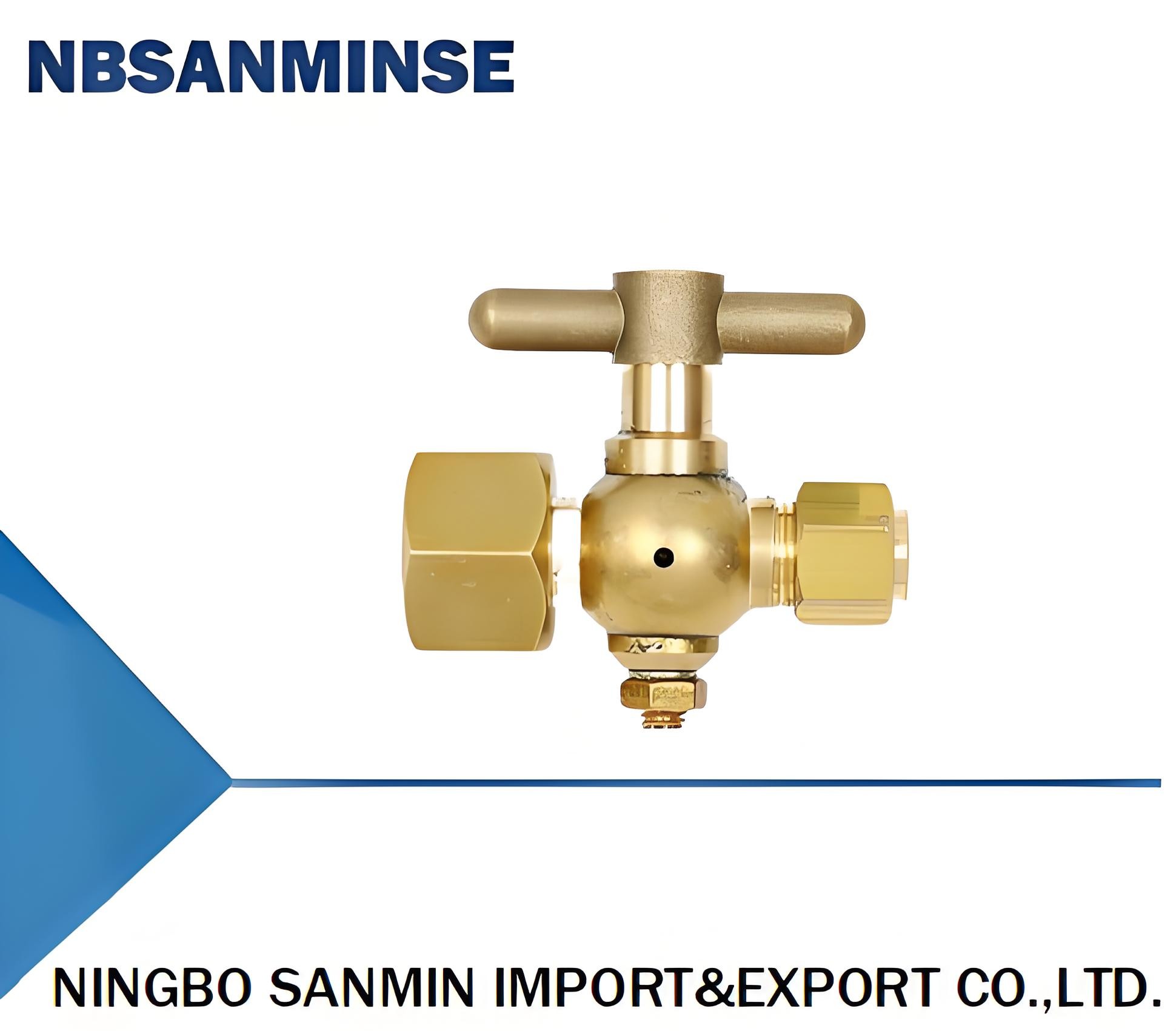

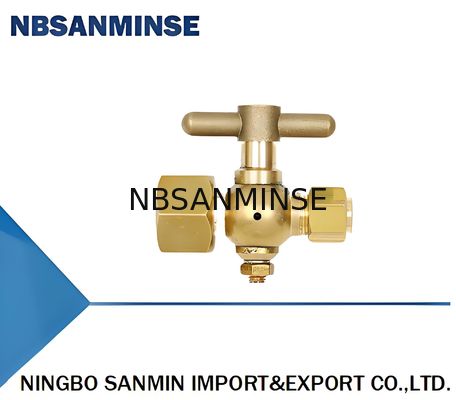

308-10 three-way plug valve is mainly used for connecting pressure gauges. The plug valve is a rotary valve with a closing element or plunger shape. It is a type of valve that can be opened or closed by rotating 90 degrees to make the channel port on the valve plug the same or separate from the channel port on the valve body. The nominal pressure 0.6MPA,strength testing is 1.6MPa.

Our company's product, the three-way plug valve, has superior and precise polishing technology, precise dimensions, easy welding between pipe fittings, and quick assembly; The wall thickness between the pipe ends is consistent, ensuring smooth product flow and avoiding residue. Welcome to come and purchase.

Code internal thread connecting pipe
308-06 M20*1.5 Ф6
308-08 M20*1.5 Ф8
308-10 M20*1.5 Ф10
